GT35pro Follow Focus
Order your GT35pro 35mm DOF Adapter here.

To order your GT35pro, please contact me gt35pro@gmail.com and let me know which model you want or go to my new store at www.gt35store.com to order. I will try my best to answer all queries you may have. After you make payment I will need 3-5 days before I ship the adapter (maybe quicker). These units are made by hand and I test every adapter properly. PLEASE DO NOT USE MY HOTMAIL ACCOUNT FOR ENQUIRES AS I DO NOT CHECK THAT ACCOUNT. PLEASE USE gt35pro@gmail.com or go to www.gt35store.com

Sunday, May 11, 2014

NEW FOR 2014. $349 NEWAY 7 inch HDMI & SDI PROFESSIONAL IPS FULL HD FIELD MONITOR WITH VECTORSCOPE HISTOGRAM WAVEFORM FOCUS PEAKING

So it's been a long time I have updated this site and for 2014 I have some cool monitor products for sale. I also sell these on eBay but the price is much higher due to the high commission rates that I have to pay to ebay.

I can sell this at a much lower price on my own store. Just for your information, I have been a reseller for this manufacturer / factory for the past 5 years selling many monitors for 35mm adapter users and have guided them to the professional video market. To this day, their products still incorporate the flip 180 degree function so you can also mount your monitor upside down.

INTRODUCING the new NEWAY CK700 series Professional IPS HD monitor.

http://www.gt35store.com/
http://www.gt35store.com/


Here is the description from my ebay listing:

The CK700HX incorporates a HD IPS (In-plane Switching) LED panel, giving the monitor 1280 x 800 resolution, wider viewing angles and exceptional color rendition. A complete feature set includes on-screen tally and on screen audio meter, easy to power in the field with multiple battery plate options from DV battery, DSLR, or Pro battery and waveform monitors.

The CK700 series of monitors are built by the OEM supplier of some of the IKAN Professional monitor range and are also an OEM supplier for Fujifilm.
This monitor carries a Full 1 year factory warranty.

The higher cost of shipping is due to the higher weight of the package as it include a full compliment of accessories, including a very robust high quality beautiful flight case. This monitor is of a very high quality and a high resolution professional product.

Most cheaper monitors still use the very dated TFT LCD (not LED) with limited viewing angles and low 800x480 resolution. Even the higher priced ones only have resolutions up to 1024x600 and still no IPS screens. These monitors are 5 year old models.

This product rivals the IKAN VK7i retailing at $499 plus shipping but the VK7i does not have have Waveform/Vector-scope/Histogram on this model.

SHIPPING:
This package will ship from China only using DHL for the fastest and safest transaction. Shipping amount is fixed at $66 to the United States and U.K. I know the amount is high compared to the free shipping monitors but it is justified as it is a high quality professional product packed in a high quality flight case. It will arrive at your doorstep very quickly in just 2-3 days after shipping and has detailed tracking. The package size 12.6" x 10" x 4" and is 8 lbs (3.0kg) heavy.

Please contact me for shipping amount if you are not in the United States or UK. You can make your payment first and I will send an invoice if the shipping is more than $66
Please email me your phone number for DHL shipping.

Superb Viewing Angles:
The CK700HX sports an IPS LED Panel with a resolution of 1280x800 (720p+).
In-Plane Switching provides the monitor with wider viewing angles and better color reproduction than standard LCD panels.

On-Screen Tally On-Screen Tally System:
 The CK700H has an integrated tally system front and rear, but instead of using lights on the front chassis of the monitor, the front tally is displayed on screen..

Input / Output: A variety of inputs are all complimented with lossless outputs (Optional).
The monitor includes Composite (BNC) , Component HD and SD (BNC), and HDMI ports.

SCOPES:
This model the CK700HX includes these high end features only found in expensive branded monitors. Your consumer camcorder / DSLR now has waveform features found on broadcast style camcorders at a small cost.
Peaking, False Color (Kind of like Zebra for checking exposure and under exposure) Histogram, Color Histogram, RGB Histogram, Waveform, Vector Scope, Audio Level Meter, 1:1 pixel zoom 180 degrees image flip, Check Field

 BATTERY PLATE SUPPORT:
1) SONY F970 Type Battery Plate

2) SONY QM91D Type Battery Plate

3) Canon LP-E6 Type Battery Plate
4) Panasonic DU21 Type Battery Plate
5) Nikon EN-EL15 Type Battery Plate
6) V-Mount (optional)
7) Anton Bauer mount (optional) Please email me 2 of your selected preference (included in package) Additional Plate is USD $6. If no option is selected, we will send number 1&3 plates.

ACCSSORIES INCLUDED:
1. Folding sunshade cover
2. Gimbal bracket
3. DV Battery plate - 2 types
4. HDMI A/C Cable
5. 12V DC adapter
6. Power and TALLY Cable
7. Flight-case
8. Shoe Mount
9. Battery plate bracket
10. V-Mount / Anton Bauer mount (optional)

 SPECS:
Input Signal: HDMI, YPBPR, Composite, Audio L&R, Tally
Panel: 7 inch LED Backlight IPS Resolution:1280x800 pixels Full HD 1920x1080 display
Aspect Ratio: 16:9 Brightness: 400 cd/m2 Contrast: 800:1
Viewing Angle: 178°/178°(H/V)
Speaker: 1 (built-in) Earphone Slot: 1 (built-in) Current: 900 mA Input Voltage: DC 7-24V (XLR Connector)
Power consumption: ≤24W

DV Battery Plate: F-970 / QM91D / DU21 / LP-E6 / ENEL-15
Anton Battery Plate: Support (Optional)
V-Mount Battery Plate: Support (Optional)

Operating Temperature: - 20°C ~ 60°C

Storage Temperature: - 30°C ~ 70°C

Dimension (LWD): 191.5x152x31 / 141 mm (with cover)

Flightcase Dimension (LWD): 309x247x97.5mm Weight: 760g / 938g (with cover) / 2160g (with flightcase)


 Please use my link HERE to get to my store to check it out.
http://www.gt35store.com/
Alternatively you can also buy from ebay if you feel safer going through ebay but dont mind paying more. You can also check out my feedback score as well. click HERE

Saturday, April 14, 2012

Very good video using the gt35pro 35mm DOF adapter

I found a customer's video using the gt35pro and this music video blew me away! Looked exactly like it was shot on film. Here is the clip.

http://vimeo.com/22869036

Monday, April 9, 2012

Cheap Film and Video Gear from China Floods the Industry

Singapore, Apr 9 2012
For Immediate Release.

Gt35pro keeps ahead with low cost motorized electronic remote follow focus kit.

The  high definition video capable DSLR revolution in 2010 brought many changes to the industry. Expensive equipment once only available in the film and movie industry are now very affordably priced thanks to these video capable DSLRs.

Before the entry of the video DSLR into the mainstream market, there was the 35mm Depth of Field adapter which allowed many film makers the freedom to use the commonly available (Canon Nikon Olympus) SLR film lenses with the standard DV and mini DV camcorders and later the HDV camcorders to obtain shallow depth of field, very much like the high end 35mm movie lenses. These were pioneered by companies like

Letus, Brevis and Redrock Micro whom all had their roots in the DIY user groups of dvinfo forum. Lower cost versions of these devices came later from innovative individuals like Jag35, gt35pro and many others who offered alternatives to the more costlier offerings of the big boys.

 Now that the high definition video capable DSLRs are here, many of these companies turned to selling DSLR accessories like rod support, matteboxes, follow focus kits. Jag35 has also abandoned the 35mm adapter product range. Hungry Chinese companies jumped on this bandwagon and started producing very low cost copies of these American made support kits and matteboxes.

 In order to beat the competition, gt35pro of the 35mm DOF adapter fame has just released a low cost motorized electronic  follow focus unit to stay in the game. This unit has features present in higher end offerings costing up to 3 times more. The follow focus unit is a manual follow focus unit which can be converted to a remote motorized follow focus when required. But the most amazing thing about

it is that it is programmable with a 2 position memory capability and the ability to have total control of the focusing speed when it is in automatic rack focusing mode. A user can control the speed from a super slow crawl to a high speed crash rack focus movement offering endless creative shooting options. This would be really useful on a Jib arm or slider. Manual realtime electronic control is also available at the flick of a switch.

 The only downside to this is the sound from the servo motor. This makes the microphone on the camera useless. Most units in this low cost price range are also plagued with this problem. Movie makers usually have a boom mike for shooting so this is not a problem. This is also useful for shots in which the audio will be removed and replaced with a soundtrack, much like many TV commercials we see today.

 Manual normal follow focus configuration can be restored by removing the motorized gear module and re-attaching the standard focusing knob.

 Since this is aimed at the entry level market, a silent version will not be produced, according to gt35pro. However, a higher end product with a silent motor will be in development soon, also dependent on demand.

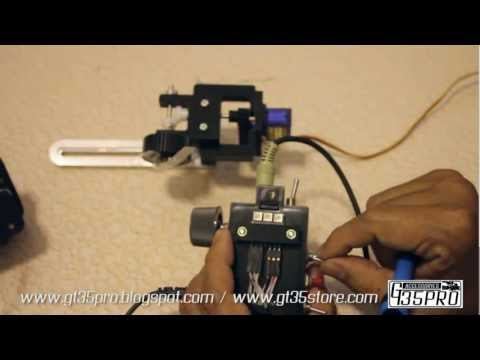

Youtube footage shows Greg Tay of gt35pro demonstrating the product.






 Gt35pro develops and builds all their products with very little subcontracting in Singapore. All products are designed, built and machined with 2 different cnc routers, a lathe and a 3d printer for creating small difficult to build parts in ABS plastic. Customization of parts is also possible. Please contact Greg Tay to know more.


Thursday, November 10, 2011

Where to buy Letus Extreme or Elite ground glass ?

I have produced many replacement ground glass for the Letus 35 Extreme and I am now offering it in my store here www.gt35store.com in the 35mm adapter accessories section. I will soon offer ground glass of different custom sizes as well.

New gt35pro Canon FD 35mm DOF adapter

So I completed a gt35pro Nexus 35mm adapter for a customer in France. I took some shots of the 3 micron ground glass or focusing screen and the images were nothing short of amazing. I used a Canon FD 135mm f2.5 lens on the 35mm DOF adapter and I used my old Lumix FZ5 to snap these 5mp shots of the ground glass. There was absolutely no vignetting and very sharp images edge to edge. A good lens really brought out the best in the gt35pro.And Redrock advertised as being the best 35mm adapter in the world?
Enjoy the pictures after the blog posts.....

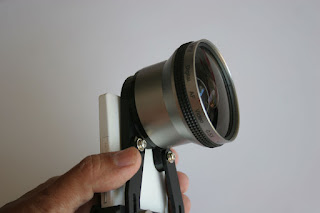

GT35pro 35mm Adapter new feature

GT35pro 35mm Adapter new feature
version 4a

Superior condenser lens and 3 micron ground glass

Superior condenser lens and 3 micron ground glass
Canon FD 135mm f2.5 lens on gt35pro Nexus FD version

Superior Condenser lens with 3 micron groung glass

Superior Condenser lens with 3 micron groung glass
Zoomed in.

It's a cloudy day. Check out the very sharp and crisp image on the ground glass

With built in achromat. Notice the Lumix logo reflecting on the glass.

Comments from Users

"Dear greg_tay67,Just a quick note to say hi and thanks for the 35mm adaptor (Elite). It arrived last week with the rods coming this morning. I think UK customs had a bit of a bash around with it as the front lens looks like it had been pushed out. A quick wipe of the fingerprints and a dab of hot glue and all was fine.Must say, I am impressed by the adapter as a whole and it supplies images easily on a par with the redrock M2 unit I usually hire. I'll be recommending you to the other folks I know and work with around Scotland.
Thanks again"
Chris Gormlie.


"Hey Greg,Sorry I didnt send you an email letting you know, but yes, we have received them. I put the 5 micron glass in. I am very happy with the results. IN outdoor lighting with the supplied(Letus35) screen I could not close the 35mm lens down below f5 or 6. I did a test where I closed the lens down close to f20 with your screen and still had a somewhat usable image. This will be great for when we are shooting outdoors and need to buy ourselves some focal range. The image overall looks very clean also!!Thanks so much!!
James "

"Hi Greg,I got the adapter and it works great. I've got to get a smaller lens, as right now I've got a canon zoom and the whole thing is quite big. Or I've got to get some major support for the lens before I use it. I'm going to try and rig something with mirrors so I can see correctly. Love how it works! Thanks for your great work! I'll recommend you to anyone. Could you tell me what exactly the red button on the motor does? Thanks again,Susan"
Susan Emshwiller
Desert City Film Works
5025 Los Robles Street
Los Angeles, Ca. 90041

"Hello Greg! Thanks for your DOF adapter, it already got to our post office here in Prague. I have one week of shooting behind me. I am still learning, but the results are great!! On HF100 a have a visible hotspot, I can avoid it by using a bigger zoom. I playing around with settings, the best results I get with AV mode f2.0 (using CANON EF 50mm/1.8 II lens) + increasing EXPOSURE (+4). Cine mode does not look so great. I decided to buy small LCD TV green (7“) to see what I am shooting, because it is hard to have everything in focus and good composition with the picture upside down :). Maybe I can create my own Vimeo account, I will let you know. I am really happy with your GT35pro!"
DusanPrague

"This is an amazing 35mm adapter for the price. The picture quality with the 5 micron is outstanding. I used the Nikkor 17-35mm/2.8 and got a beautiful image from corner to corner in such an affordable adapter. Hats off! Wow! I also tried the Nikkor 80-200mm/f2.8 lens and got brilliant image quality. I would say the Nikkor 80-200mm/f2.8 lens really compliments this 35mm adapter.The only problem being that the camera lens is supper long with the two attached."- John


"Hi Greg!
Already received the adapter this week. YOU DID A GREAT JOB. I'm very happy with it now, I have made several tests, and it seems to workprefectly now. Also the quality of materials and finish now, is superb. Many many Thanks
I have already sent you the shipping fees.
Many thanks for your support, you're really a great and talented guy. I will keep you tuned on how it's going with the adapter on my nextfilms.
Many Thanks",David


David XarachDirector de Cine / Filmmaker
http://www.imdb.com/name/nm3038110/
Productor Ejecutivo / Executive ProducerMariachi Style Filmswww.mariachistylefilms.com

GT35pro Advanced HV20 and RED Camera Footage Intercut

The Bro Pact shot with GT35pro Elite and Sony FX1

Local Singaporean music video HV30 GT35pro Elite trial shoot in lowlight SD mode

Charlie's Nuts. 48 hour Guerilla Film Winner

Congratulations To Wes Roberts and Team Jumpcut for your winning Film

Wes Roberts, Director of Team Jumpcut email to me:

"As promised I wanted to follow-up and let you know how using the "Tay-dapter" worked on our 48 Hour Film. And my experience was --- fantastic! I think the finished HD product says most everything for itself; watch "Charlie's Nuts" -> http://www.teamjumpcut.com/
The adapter was consistent and provided no problems at all. It worked perfectly with my HV20, and I was able to shoot without any problems. I used everything from an 18mm wide angle to a 600mm ultra-telephoto without vignetting (unless I wanted it!). Most of the film was shot using my 1.4 50mm and my 1.8 85mm - but I rarely shot them all the way open. It says a lot for your device that I was able to see the weaknesses in my cheap wide angle, and conversely I could also see the quality of my fast nikkors! I have viewed the film on a huge 1080i TV, and even seen it projected in a movie theater and it held up to both environments.
I heartily recommend your adapter. I spent a lot of time looking at the footage demoed by other budget adapters and I thought I saw something in yours that seemed to fit the bright, pro-image I wanted to create, and I am happy to say that I was right.
Well done!
Best,Wes"

Please visit their website http://www.teamjumpcut.com/


"HOW TO SHOOT WITH A 35mm DOF ADAPTER"

1) The image will always be upside down unless you use an external monitor upside down. The larger monitor will also helo you to focus accurately. Some 35mm adapter feature a image flip prism add-on. These are very expensive (around USD$500) and takes away more light. Unless there is a hack for your camcorder you will need to re-program your brain or use an external monitor.

2) Always use a 50mm prime (fixed) lens as your main lens and other prime lenses eg. 28mm, 35mm, 80mm. Zooms will also work but they are much darker and will not allow you to shoot in much lower light. Some zooms exhibit vignetting on 35mm adapters. The vignetting will be worse in low light and you might notice grain. Best lenses to use are f1.4, f1.8 and f2.8 lenses.

3) Use a tripod to shoot because you have to turn off the OIS. Shooting handheld with 35mm adapters can be done but the person needs to be very steady. I also recommend my GT-Viper rod support so you can balance it well on a tripod and not overtighten the vertical movement screws on your tripod damaging it.

4) Always make sure your ground glass is clean. Very light dust will disappear when the vibrating motor is on but larger dirt will show up as circle spots on your footage.

5) Make sure your motor is turning when shooting and always carry a spare battery. I never liked the idea or rechargeable battery on a 35mm adapter. You will be in trouble if your battery dies in the field.

6) For the best footage, make sure you have lots of light. Any DOF 35mm adapter eats alot of light.

7)Recommended shutter speed to shoot at is 1/50 for PAL or 1/60 for NTSC. Shooting at high shutter speed makes the grain of the ground glass appear in your footage. The gt35pro series of 35mm adapters allows you to shoot at shutter speeds up to 1/200 but this is not ideal as you loose lots of light. See point number 6.


GT35pro Elite Test Shots 5 micron ground glass

GT35pro 35mm DOF adapter test with 5 micron ground glass

GT35pro 35mm DOF Adapter 9 micron focusing screen indoor low light test

GT35pro Elite Edge Sharpness Test Chart 1

GT35pro Elite Edge Sharpness Test Chart 1
Shot with a Sony Z1 and cheap Canon 50mm mk2 at f1.8. Notice the soft edges produced by the 50mm canon lens when shot wide open at f1.8

GT35pro Elite Edge Sharpness Test Chart 2

GT35pro Elite Edge Sharpness Test Chart 2
Stopping down the Canon lens to f4.0 improves the corner sharpness dramatically

GT35pro Elite Edge Sharpness Test Chart 3

GT35pro Elite Edge Sharpness Test Chart 3
Stopping down to f5.6 improves the corner sharpness even more.

GT35pro Elite Edge Sharpness Test Chart 4

GT35pro Elite Edge Sharpness Test Chart 4
Stopping down to f8 shows that the Canon 50mm mk2 lens is sharpest at this setting. This also shows the excellent edge to edge sharpness of the GT35pro Elite. Some adapter makers use this term "Best edge to edge sharpness in the industry" but is meaningless without the test charts.

GT35pro Advanced test chart 1

GT35pro Advanced test chart 1
This test chart was shot with the gt35pro Advanced version with a Canon 50mm mk2 lens wide open. No processing was done except rescaling. Note no chromatic abberations and resonably good edge to edge sharpness. Soft edges are due to the Canon Lens. See my next chart

GT35pro Advanced Test chart 2

GT35pro Advanced Test chart 2
This is shot using my Digital Rebel Kit Zoom Lens 18-55mm f3.5-5.6. The lens setting is 50mm f4.5 See that the edges are really sharp as well as the centre. Comparable to the next 2 Letus and Brevis charts. This proves that the GT35pro Advanced has got professional quality edge to edge sharpness.

HVX200 Letus Extreme test chart

HVX200 Letus Extreme test chart
Letus Extreme using a Nikon 1.4 wide open. Looks like the soft edges are from the Nikon lens but I'm not sure

HVX200 Brevis test chart.

HVX200 Brevis test chart.
Shot with Brevis using a 50mm Nikon stopped down to f2.8. Better Corner sharpness when lens stopped down.
